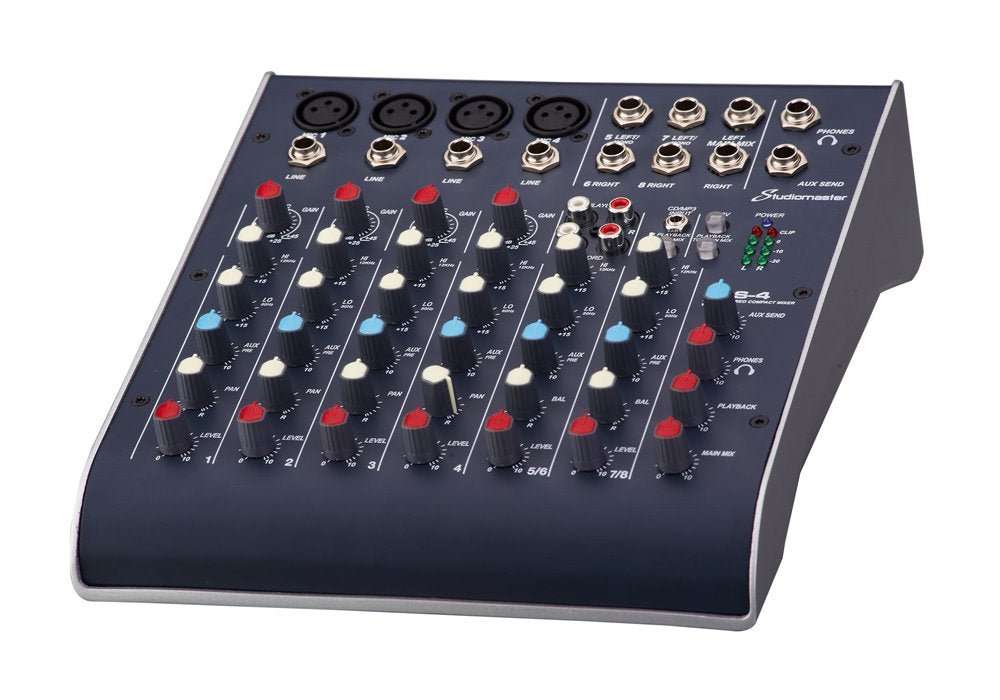

The STUDIOMASTER C2 series are an ultra compact high quality mixer series, offering comprehensive features normally found on larger consoles in an attractive compact moulded case.
All units feature 2 band EQ on all channels, auxiliary for external effects processors, pan/balance control, and input gain and level controls. The output section is equally comprehensive with stereo outputs, playback/record on both RCA and USB for the C2S, bar graph metering and headphone output. Perfect for many applications, including home recording, live mixing, location mixing, monitoring, commercial/corporate uses and many other applications where an ultra compact mixing console is required.
Channels: 8
Mic Inputs: 4
Stereo Inputs: 4
Frequency Responce: 20Hz – 20kHz (+/-1dB)
Distortion: <0.08% @ -10dBu
Residual Noise: <-98dB
Gain Range: 0dB to +45dB(Mic), -20dB to +25dB(Line)
Input Impedance: 20k ohm(bal) 24k ohm(un-bal)
EQ: Hi, Lo
Maximum Output: +21dB +/-2dB
Output Impedance: 1k ohm(record), 25k ohm(headphones)
USB: 2 channel playback/record
Dimension W*H*D: 244 x 218 x 75 (mm)
Power Supply: Wall adaptor 100-240V ~ 50/60Hz
Power Consumption: 15W
Clearance Item | No |
---|---|
Brand | Studiomaster |
