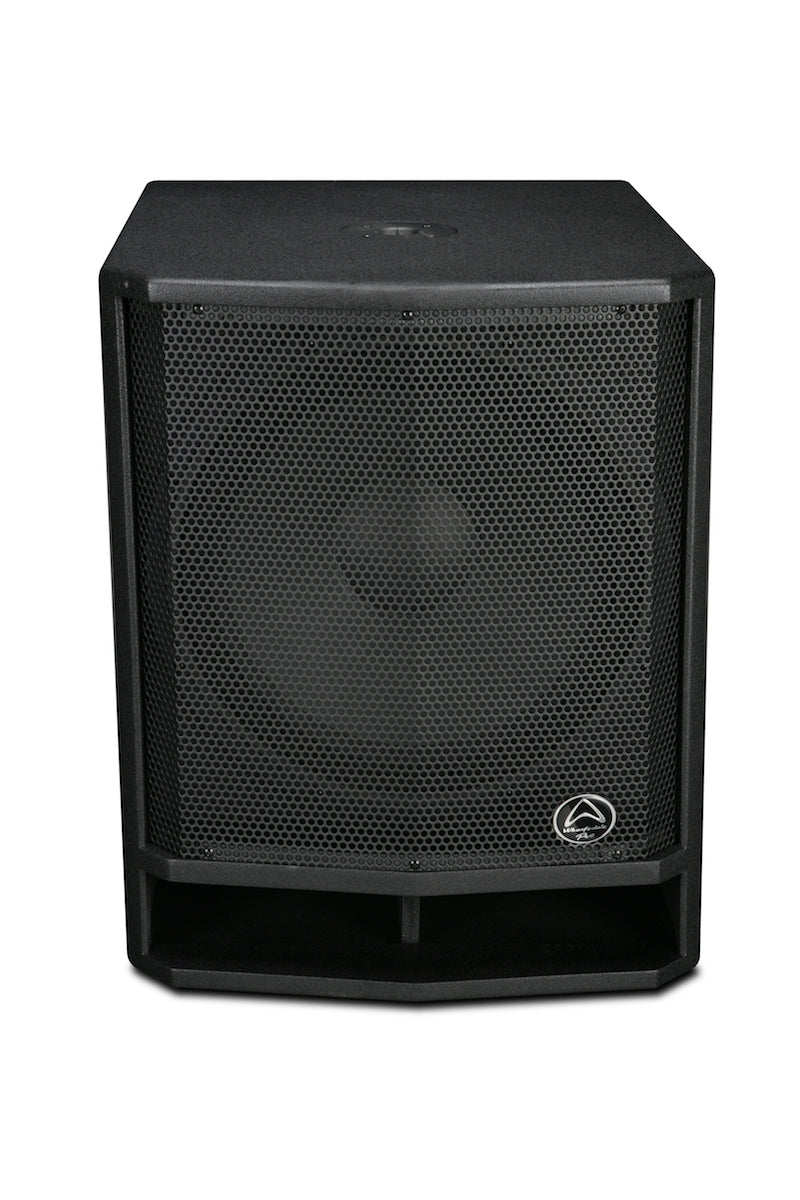

Wharfedale Pro DVP AX18B 18" Powered Subwoofer
ON SALE
DVP-AX18B 18" Active 600W Professional Subwoofer
Regular Price
$999.00
Special Price
$799.20
Availability:
In stock
SKU
WHA-DVP-AX18B
DVP-AX18B
With an internal Class D amplifier using fan-less convection cooling, the DVP-AX18B subwoofer delivers power and functionality from a road ready MDF cabinet.
An internal adjustable Low Pass Filter makes connection to other loudspeakers simple and 0° / 180° polarity switching means that phasing issues are no longer a problem.
Advanced Electronics
The rear panel of the DVP-AX Subwoofers holds many useful features. The heatsinks for the Class D amplifier she that there are no fans inside. All heat dissipation is handed by convection cooling. The balanced Hi Pass output makes it simple to connect to a full range model such as the DVP-AX12 or DVP-AX15. To deliver maximum SPL without phase cancellation, a handy polarity switch also ensures that your bass is in phase. In addition, an adjustable Low Pass Filter lets you tune your bass to sit well with the rest of the rig.
Tough MDF construction
The cabinet is constructed of MDF. This solid, but still lightweight, material gives EVO-X rigidity and reduces any mechanical distortion which a lesser material may introduce. The MDF material also contributes to the overall tone of EVO-X. It delivers a warmth and roundness to the sound, making EVO-X a pleasure to listen to, even at higher volumes.
SPECIFICATIONS
| Model Name | DVP-AX18B |
| System Type | Active 18" Subwoofer |
| Frequency Response (+/-3dB) | 35-150Hz |
| Frequency Range (-10dB) | 30-150Hz |
| Max SPL @1m | 132dB |
| Sensitivity @1w / 1m | 99dB |
| LF transducer | |
| Size | 470mm / 18" |
| LF Coil size | Quad Layer 2.5" |
| Amplification | |
| LF Power Amplifier -Class D, RMS/Peak Watts | 600w / 1200w |
| HF Power Amplifier -Class D, RMS/Peak Watts | N/A |
| DSP | N/A |
| Amplifier Protection. Power On, Thermal, low voltage | Yes |
| Driver Protection, DC, Short, Clip limiter, clip indicator | Yes |
| Limiter indicator | Yes |
| Power indicator | Green LED (Red LED front) |
| Inputs | |
| Input Sensitivity : Balanced | 775mv |
| Max input level | 6v |
| Input connectors | XLR & 1/4" (Line/MIC) |
| Input impedance | Balanced:20k |
| LPF Control | 80Hz - 120Hz |
| Polarity control | 0° / 180° |
| Outputs | |
| Line output connector | XLR THRU/HPF(OUT) |
| AC Power Options : SMPS | 220-240V 50/60Hz |
| 100-120V 50/60Hz | |
| Pole socket | 35mm |
| Handles | 2 (one on each side) |
| Enclosure Material and finish | MDF / Black paint |
| Grille material | Steel |
| Dimensions unpacked | |
| Height | 650mm / 25.6" |
| Width | 528mm / 20.8" |
| Width (rear) | 528mm / 20.8" |
| Depth | 528mm / 20.8" |
| Dimensions packed | |
| Height | 740mm / 29.1" |
| Width | 725mm / 28.5" |
| Width (rear) | 725mm / 28.5" |
| Depth | 725mm / 28.5" |
| Net Weight (kg / lbs) | 38.3kg / 84.3lbs |
| Gross Weight (kg / lbs) | 44.2kg / 97.2lbs |
| Clearance Item | No |
|---|---|
| Brand | Wharfedale Pro |
